以下为部分产品技术参数，更多资讯请或电邮winnsky@winnsky.com

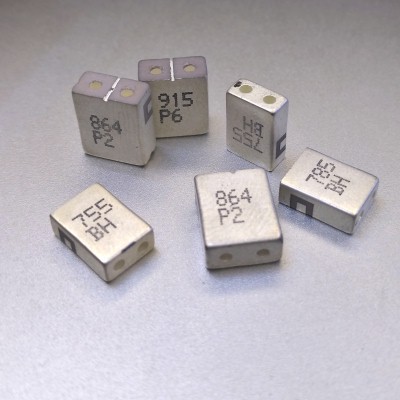

介质滤波器Dielectri Filter
|
型號 Part Number |
中心頻率 Fo（MHz) |
插入損耗 IL(dB) |
帶寬 BW(MHz) |
帶內波動 Ripple(dB) |
駐波比 V.S.W.R |
外形尺寸 Size（mm) |
| DFC410B03A2 | 410 | 3.5max | ±1.5 | 1.0max | 2.0:1max | 11.1*7.45*3.7 |
| DFC422B01A1 | 422.9 | 6.0max | ±0.5 | 1.0max | 2.0:1max | 10.2*7.45*.3.7 |
| DFC433B02A | 433.92 | 3.5max | ±1.0 | 0.5max | 2.0:1max | 10.0*7.45*3.7 |
| DFC434B06A | 434.5 | 3.5max | ±3.0 | 1.0max | 2.0:1max | 10.2*7.45*.3.7 |
| DFC462B08A | 462 | 3.5max | ±4.0 | 1.0max | 2.0:1max | 9.4*7.45*3.7 |
| DFC500B16A4 | 500 | 3.5max | ±8.0 | 1.0max | 2.0:1max | 7.45*8.9*3.7 |
| DFC500B20A7 | 500 | 2.0max | ±20.0 | 1.0max | 2.0:1max | 7.45*8.6*3.7 |
| DFC500B24A8 | 500 | 2.0max | ±12.0 | 1.0max | 2.0:1max | 7.45*9.4*3.7 |
| DFC502B20A | 502 | 2.5max | ±10.0 | 1.0max | 2.0:1max | 7.45*8.5*3.7 |
| DFC596B24A2 | 596 | 2.5max | ±12.0 | 0.5max | 2.0:1max | 7.45*7.3*3.7 |
| DFC555B30A | 555 | 2.5max | ±15.0 | 1.0max | 1.7:1max | 6.0*3.0*8.6 |
| DFC640B24A1 | 640 | 2.5max | ±12.0 | 1.0max | 2.0:1max | 7.7*6.0*3.0 |
| DFC690B06A4 | 690 | 4.0max | ±3.0 | 1.0max | 2.0:1max | 9.2*5.75*2.85 |
| DFC695B30A | 695 | 3.0max | ±15.0 | 1.0max | 1.7:1max | 7.2*6.0*3.0 |
| DFC706B10A | 706 | 3.0max | ±5.0 | 1.0max | 2.0:1max | 9.1*5.8*2.8 |
| DFC717V09A3 | 717.5 | 2.5max | ±4.5 | 1.0max | 2.0:1max | 5.8*2.8*8.7 |
| DFC746B16A | 746 | 3.5max | ±8.0 | 0.5max | 2.0:1max | 8.7*5.8*2.8 |
| DFC750B06A3 | 750.5 | 3.5max | ±3.0 | 0.5max | 2.0:1max | 8.8*5.8*2.8 |
| DFC755B30AH | 755 | 3.0max | ±15.0 | 1.0max | 2.0:1max | 9.0*6.0*3.0 |
| DFC775B30A | 775 | 3.0max | ±15.0 | 1.0max | 2.0:1max | 8.7*6.0*3.0 |
| DFC777B15A2 | 777 | 3.0max | ±7.5 | 1.0max | 2.0:1max | 8.4*5.8*2.8 |
| DFC781B10A1 | 781 | 3.0max | ±5.0 | 1.0max | 2.0:1max | 8.2*5.8*2.8 |
| DFC784B04A1 | 784 | 3.5max | ±2.0 | 1.0max | 2.0:1max | 9.4*6.0*3.0 |
| DFC785B16A1 | 785 | 3.0max | ±8.0 | 1.0max | 2.0:1max | 7.82*5.8*2.8 |
| DFC788B10AE | 788 | 2.7max | ±5.0 | 1.0max | 1.6:1max | 8.5*7.45*3.65 |
| DFC793B10A | 793 | 3.0max | ±5.0 | 1.0max | 2.0:1max | 8.1*5.8*2.8 |
| DFC798B10AF | 798 | 3.0max | ±5.0 | 1.0max | 2.0:1max | 9.4*6.0*3.0 |
| DFC800B40AH | 800 | 2.5max | ±20.0 | 1.0max | 2.0:1max | 8.5*6.0*3.0 |
| DFC827B01A | 827 | 4.0max | ±0.5 | 1.0max | 2.0:1max | 9.0*6.0*3.0 |
| DFC836B24A | 836 | 2.5max | ±12.0 | 1.0max | 2.0:1max | 5.8*2.8*7.9 |
| DFC848B36A1 | 848 | 2.8max | ±18.0 | 1.0max | 2.0:1max | 7.9*6.0*3.0 |
| DFC855B30AH | 855 | 3.0max | ±15.0 | 1.0max | 2.0:1max | 7.8*6.0*3.0 |
| DFC859B06A | 859 | 2.5max | ±3.0 | 1.0max | 2.0:1max | 7.3*5.75*2.85 |
| DFC864B14A9 | 864 | 2.2max | ±7.0 | 1.0max | 2.0:1max | 7.8*7.45*3.65 |
| DFC865B04A3 | 865 | 3.0max | ±2.0 | 1.0max | 2.0:1max | 8.4*6.0*3.0 |
| DFC866B04A | 866 | 3.0max | ±2.0 | 1.0max | 2.0:1max | 8.3*6.0*3.0 |
| DFC881H25A | 881.5 | 3.0max | ±12.5 | 1.0max | 2.0:1max | 7.5*8.2*2.8 |
| DFC881R25A | 881 | 3.0max | ±12.5 | 1.0max | 2.0:1max | 9.0*11.8*3.8 |
| DFC910P01A | 910.5 | 3.8max | ±0.5 | 1.0max | 2.0:1max | 8.6*7.3*3.65 |
| DFC911P04A | 911.25 | 3.5max | ±2.0 | 0.5max | 2.0:1max | 8.8*7.3*3.65 |
| DFC912B03A | 912.5 | 4.0max | ±1.5 | 1.0max | 2.0:1max | 8.1*5.8*2.8 |
| DFC913B25A | 913 | 2.5max | ±12.5 | 1.0max | 2.0:1max | 7.3*5.8*2.8 |
| DFC914D01A1 | 914.5 | 3.5max | ±0.5 | 0.5max | 2.0:1max | 8.8*6.0*3.0 |
| DFC914D01AJ | 914.5 | 4.5max | ±0.5 | 0.5max | 2.0:1max | 8.8*6.0*3.0 |
| DFC915B26A | 915 | 2.5max | ±13.0 | 0.5max | 2.0:1max | 5.8*2.8*7.2 |
| DFC915D05A4 | 915 | 3.2max | ±2.5 | 0.7max | 2.0:1max | 6.0*3.0*8.7 |
| DFC915D05A4 | 915 | 3.6max | ±2.5 | 0.7max | 2.0:1max | 8.7*6.0*3.0 |
| DFC916K02AA | 916 | 5.5max | ±1.0 | 1.0max | 2.0:1max | 8.8*6.0*3.0 |
| DFC917B30A | 917 | 2.5max | ±15.0 | 1.0max | 2.0:1max | 7.3*6.0*3.0 |
| DFC918R28A1 | 918 | 3.0max | ±14.0 | 0.5max | 2.0:1max | 8.6*11.8*3.8 |
| DFC927B02A | 927 | 4.5max | ±1.0 | 0.5max | 2.0:1max | 8.3*5.8*2.8 |
| DFC930B20A2 | 930 | 3.5max | ±10.0 | 1.0max | 1.8:1max | 7.3*7.45*3.65 |
| DFC931P04A1 | 931 | 3.0max | ±2.0 | 0.8max | 2.0:1max | 8.6*7.3*3.65 |
| DFC942G35A | 942.5 | 3.0max | ±17.5 | 1.0max | 2.0:1max | 8.5*11.8*3.8 |
| DFC945R30A | 945 | 2.5max | ±15.0 | 1.0max | 2.0:1max | 11.8*8.4*3.8 |
| DFM945S30EC | 945 | 3.0max | ±15.0 | 0.8max | 1.4:1max | 13.0*12.0*5.0 |
| DFD1217R44EA | 1217 | 0.8max | ±22.0 | 0.5max | 1.5:1max | 9.1*7.6*4.0 |
| DFN1232R136EA | 1232 | 0.7max | ±68.0 | 0.4max | 1.5:1max | 9.2*4.0*8.0 |
| DFN1241R73EA | 1241.5 | 0.8max | ±36.5 | 0.4max | 1.5:1max | 9.2*4.0*8.6 |
| DFC1250P10A | 1250 | 3.5max | ±5.0 | 1.0max | 2.0:1max | 6.3*7.3*3.65 |
| DFF1268P40DB | 1268 | 0.7max | ±20.0 | 0.3max | 2.0:1max | 6.6*3.5*8.8 |
| DFC1268B22A | 1268 | 2.2max | ±11.0 | 0.8max | 2.0:1max | 5.1*6.0*3.0 |
| DFN1567R95EA | 1567.5 | 0.7max | ±47.5 | 0.4max | 1.5:1max | 9.2*4.0*6.7 |
| DFF1568P17DC | 1567.5 | 1.3max | ±8.5 | 0.5max | 2.0:1max | 6.6*3.5*10.5 |
| DFC1568R20A1 | 1568 | 1.5max | ±10.0 | 0.5max | 1.5:1max | 11.5*6.2*4.9 |
| DFF1568P20DA | 1568 | 1.5max | ±10.0 | 0.5max | 2.0:1max | 10.0*6.6*3.5 |
| DFC1575S10A3 | 1575 | 1.0max | ±5.0 | 0.5max | 1.5:1max | 10.8*3.8*6.9 |
| DFC1575P10A | 1575.42 | 3.0max | ±5.0 | 0.5max | 2.0:1max | 5.8*2.8*5.1 |
| DFC1575E10A1 | 1575.42 | 3.0max | ±5.0 | 1.0max | 2.0:1max | 6.0*3.3*5.05 |
| DFC1583P49A | 1583.5 | 0.8max | ±24.5 | 0.5max | 1.5:1max | 7.5*7.5*3.8 |
| DFD1584R50EA | 1584 | 1.2max | ±25.0 | 0.3max | 1.5:1max | 6.8*7.1*3.2 |
| DFC1585S56A | 1585 | 2.5max | ±28.0 | 0.7max | 1.3:1max | 10.8*6.9*3.8 |
| DFN1587S56EA | 1587 | 1.6max | ±28.0 | 1.0max | 1.43:1max | 10.8*3.85*7.1 |
| DFC1616H10A | 1616 | 1.0max | ±5.0 | 1max | 1.8:1max | 7.45*7.1*3.2 |
| DFF1616P10DA | 1616 | 1.3max | ±5.0 | 0.3max | 1.5:1max | 10.2*6.6*3.5 |
| DFN1900S40A1 | 1900 | 2.8max | ±20.0 | 0.7max | 1.7:1max | 10.8*9.3*3.85 |
| DFC2326H12A1 | 2326.25 | 2.5max | ±6.0 | 1.2max | 2.0:1max | 7.3*3.06*7.1 |
| DFC2332H25A2 | 2332.5 | 2.5max | ±12.5 | 1.0max | 2.0:1max | 7.2*3.2*7.0 |
| DFC2338P13A2 | 2338.75 | 2.5max | ±6.5 | 1.0max | 1.5:1max | 7.3*3.65*7.1 |
| DFN2345S50EC | 2345 | 2.7max | ±25.0 | 1max | 1.7:1max | 10.8*8.2*3.85 |
| DFN2350W100EA | 2350 | 2.0max | ±50.0 | 1.0max | 1.4:1max | 15.9*4.3*7.4 |
| DFC2442V84A1 | 2442 | 2.0max | ±42.0 | 0.8max | 2.0:1max | 3.6*1.7*3.4 |
| DFC2450H100A2 | 2450 | 2.0max | ±50.0 | 1.0max | 2.0:1max | 7.2*3.0*6.3 |
| DFC2492R60A4 | 2492 | 1.5max | ±30.0 | 0.8max | 2.0:1max | 11.8*6.7*3.8 |
| DFM2600W70FA | 2600 | 2.5max | ±35.0 | 1.0max | 22.5*9.0*6.5 | |
| DFN2605S60EC | 2605 | 2.0max | ±30.0 | 0.5max | 10.8*7.1*4.1 | |
| DFM2650W105FA | 2650 | 3.0max | ±52.5 | 0.6max | 1.5:1max | 22.5*10.9*6.5 |
| DFM3430W168FA | 3430 | 3.0max | ±84.0 | 1.0max | 1.8:1max | 22.5*10.9*6.5 |
| DFC3450H300A2 | 3450 | 2.0max | ±150.0 | 1.0max | 1.7:1max | 7.4*3.0*4.4 |
| DFM3500W70FA | 3500 | 3.0max | ±35.0 | 1.0max | 22.5*9.0*6.5 | |
| DFC5245G190A | 5245 | 3.0max | ±95.0 | 1.2max | 1.9:1max | 3.6*1.85*2.8 |
| DFD5250S160DC | 5250 | 2.3max | ±80.0 | 1.2max | 1.67:1max | 8.2*3.0*4.0 |
| DFN5250S160DA | 5250 | 3.0max | ±80.0 | 1.2max | 1.67:1max | 8.2*3.3*5.3 |
| DFC5665G370A | 5665 | 3.0max | ±185.0 | 1.0max | 1.9:1max | 3.6*1.85*2.68 |
| DFM5800W70FA | 5800 | 3.5max | ±35.0 | 1.0max | 22.5*9.0*6.5 |
