以下为部分产品技术参数，更多产品资讯请或电邮winnsky@winnsky.com

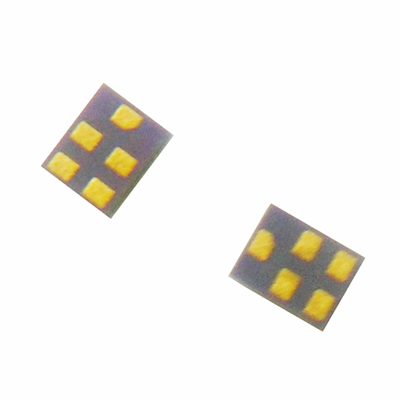

手机声表滤波器 Saw Filter For Cellphone
|
型號 Part number |
中心频率（MHZ） |
帶寬(MHz) |
插入損耗（dB） |
尺寸（mm） |
終端阻抗Ter |
應用領域 |
|
NDFH028 |
737.50 |
17.00 |
1.9(2.5*) |
1.1*0.9*0.65 |
Unbalanced |
BAND12 |
|
NDFH023 |
751.00 |
9.50 |
2.2(2.5*) |
1.1*0.9*0.65 |
Unbalanced |
BAND13 |
|
NDFH021 |
773.00 |
29.50 |
2.4(3.0*) |
1.1*0.9*0.65 |
Unbalanced |
BAND28 |
|
NDFH026 |
780.50 |
44.50 |
1.5(2.0*) |
1.1*0.9*0.65 |
Unbalanced |
BAND28 |
|
NDFH022 |
788.00 |
29.50 |
2.5(3.8*) |
1.1*0.9*0.65 |
Unbalanced |
BAND28 |
|
NDFH016 |
806.00 |
30.00 |
2.1(3.0*) |
1.1*0.9*0.65 |
Unbalanced |
BAND20 |
|
NDFH036 |
845.00 |
10.50 |
2.1(2.7*) |
1.1*0.9*0.65 |
Unbalanced |
|
|
NDFG004 |
869.00 |
2.00 |
1.4(2.0*) |
1.4*1.1*0.70 |
Unbalanced |
CDMA |
|
NDFH005 |
881.50 |
25.00 |
1.2(1.6*) |
1.1*0.9*0.65 |
Unbalanced |
BAND5 |
|
NDFH007 |
881.50 |
25.00 |
1.8(2.5*) |
1.1*0.9*0.65 |
Balanced |
BAND5 |
|
NDFH014 |
942.50 |
35.00 |
1.6(2.4*) |
1.1*0.9*0.65 |
Unbalanced |
BAND8 |
|
NDFH018 |
942.50 |
35.00 |
2.3(3.5*) |
1.1*0.9*0.65 |
Balanced |
BAND8 |
|
NDFG002 |
1568.00 |
15.42 |
1.6(1.8*) |
1.4*1.1*0.70 |
Unbalanced |
GPS+B1 |
|
NDFG001 |
1575.42 |
2.00 |
1.2(1.5*) |
1.4*1.1*0.70 |
Unbalanced |
GPS |
|
NDFG003 |
1575.42 |
2.00 |
0.8(1.0*） |
1.4*1.1*0.70 |
Unbalanced |
GPS |
|
NDFG009 |
1575.42 |
2.00 |
0.9(1.3*) |
1.4*1.1*0.70 |
Unbalanced |
GPS |
|
NDFG010 |
1580.00 |
46.80 |
1.8(2.1*) |
1.4*1.1*0.70 |
Unbalanced |
GPS+B1+GLONASS |
|
NDFH003 |
1580.00 |
46.80 |
1.3(2.0*) |
1.1*0.9*0.65 |
Unbalanced |
GPS+B1+GLONASS |
|
NDFH012 |
1842.50 |
75.00 |
2.0(3.0*) |
1.1*0.9*0.65 |
Unbalanced |
BAND3 |
|
NDFH006 |
1900.00 |
40.00 |
1.4(2.0*) |
1.1*0.9*0.65 |
Unbalanced |
BAND39 |
|
NDFH011 |
1960.00 |
60.00 |
1.7(2.5*) |
1.1*0.9*0.65 |
Unbalanced |
BAND2 |
|
NDFH027 |
2017.50 |
15.00 |
2.0(2.5*) |
1.1*0.9*0.65 |
Unbalanced |
BAND34 |
|
NDFH010 |
2140.00 |
60.00 |
1.6(2.2*) |
1.1*0.9*0.65 |
Unbalanced |
BAND1/4/10 |
|
NDFH017 |
2140.00 |
60.00 |
2.0(2.6*) |
1.1*0.9*0.65 |
Balanced |
BAND1 |
|
NDFG023 |
2350.00 |
100.00 |
2.0(2.5*) |
1.4*1.1*0.70 |
Unbalanced |
BAND40 |
|
NDFH004 |
2350.00 |
100.00 |
2.5(3.8*) |
1.1*0.9*0.65 |
Unbalanced |
BAND40 |
|
NDFH030 |
2350.00 |
100.00 |
2.0(2.5*) |
1.1*0.9*0.65 |
Unbalanced |
BAND40 |
|
NDFG012 |
2442.00 |
82.00 |
3.5(4.8*) |
1.4*1.1*0.70 |
Unbalanced |
WIFI |
|
NDFG020 |
2442.00 |
82.00 |
1.6(2.5*) |
1.4*1.1*0.70 |
Unbalanced |
WIFI |
|
NDFG026 |
2595.00 |
120.00 |
2.2(3.2*) |
1.4*1.1*0.70 |
Unbalanced |
BAND41 |
|
NDFH008 |
2595.00 |
50.00 |
1.9(2.5*) |
1.1*0.9*0.65 |
Unbalanced |
BAND38 |
|
NDFG024 |
2600.00 |
110.00 |
2.2(2.8*) |
1.4*1.1*0.70 |
Unbalanced |
BAND41 |
|
NDFH013 |
2655.00 |
70.00 |
1.8(2.7*) |
1.1*0.9*0.65 |
Unbalanced |
BAND7 |
|
NDFH035 |
2655.00 |
70.00 |
1.8(2.7*) |
1.1*0.9*0.65 |
Unbalanced |
BAND7 |
|
NDFH039 |
3700.00 |
200.00 |
3.0（3.5*） |
1.1*0.9*0.65 |
Unbalanced |
BAND43 |
*代表最大值；
以上为部分产品技术参数，更多产品资讯请或电邮winnsky@winnsky.com
