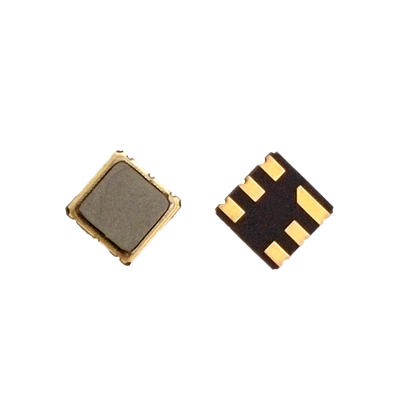

多模导航滤波器 Saw Filter for navigation
|
型號 Part number |
帶寬(MHz) Band Width |
插 損（dB） Insertion loss |
波動（dB） Ripple |
封裝 Packge |
應用領域 Application |
|
NDF9195-3030-1208.00MHz |
20.00 |
3.2(4.5*) |
1.0(2.2*) |
DCC6C |
BD2-B2 |
|
NDF9180-3030-1221.75MHz |
32.50 |
3.0(4.0*) |
1.0(1.6*) |
DCC6C |
GPS-L2 |
|
NDF9136-3030-1227.60MHz |
26.00 |
2.8(4.0*) |
0.7(1.2*) |
DCC6C |
GPS-L2 |
|
NDF9328-3030-1240.00MHz |
40.00 |
6.0(6.5*) |
0.8(1.5*) |
DCC6C |
GLL2 |
|
NDF9355-3030-1258.00MHz |
20.00 |
3.0(3.5*) |
0.5(1.2*) |
DCC6C |
GLL2 |
|
NDF9448-3030-1268.00MHz |
20.00 |
3.5(4.5*) |
0.6(1.2*) |
DCC6C |
BD2-B3 |
|
NDF9266-3030-1268.52MHz |
24.00 |
1.9(2.8*) |
0.6(1.2*) |
DCC6C |
BD2-B3 |
|
NDF9349-3030-1268.52MHz |
6.00 |
5.0(6.0*) |
0.5(1.0*) |
DCC6C |
BD2-B3 |
|
NDF9155-3030-1269.00MHz |
26.00 |
2.3(3.2*) |
0.8(1.5*) |
DCC6C |
BD2-B3 |
|
NDF9225-3030-1561.00MHz |
4.00 |
2.2(3.0*) |
0.4(1.0*) |
DCC6C |
BD2-B1 |
|
NDF9169-3030-1568.00MHz |
20.00 |
1.2(2.2*) |
0.7(1.2*) |
DCC6C |
BD2-B1;GPS L1 |
|
NDFG002-1411-1568.00MHz |
15.42 |
1.6(1.8*） |
0.3(0.7*) |
1411 |
BD2-B1;GPS L1 |
|
NDF9204-3030-1571.50MHz |
26.00 |
4.2(5.0*) |
1.0(1.5*) |
DCC6C |
GPS-L1 |
|
NDF9170-3030-1574.00MHz |
20.00 |
1.7(3.0*) |
0.7(1.2*) |
DCC6C |
GPS-L1 |
|
NDF9015-3030-1575.42MHz |
2.40 |
1.6(3.5*) |
0.3(1.5*) |
DCC6C |
GPS-L1 |
|
NDF9108-3030-1575.42MHz |
2.40 |
1.6(3.5*) |
0.3(1.5*) |
QCC8D |
GPS-L1 |
|
NDF9450-3030-1575.42MHz |
2.00 |
1.4(1.8*) |
0.2(1.0*) |
DCC6C |
GPS-L1 |
|
NDF9068-3838-1575.42MHz |
1.40 |
1.6(3.5*) |
0.3(1.5*) |
QCC8B |
GPS-L1 |
|
NDF9343-3030-1575.42MHz |
2.00 |
2.8(3.5*) |
1.0(1.5*) |
DCC6C |
GPS-L1 |
|
NDF9519-3030-1575.42MHz |
2.00 |
3.2(3.5*) |
0.5(1.0*) |
DCC6C |
GPS-L1 |
|
NDFG001-1411-1575.42MHz |
2.00 |
1.2(1.5*) |
0.1(0.5*) |
1411 |
GPS-L1 |
|
NDFG003-1411-1575.42MHz |
15.42 |
1.05(1.3*） |
0.3(0.5*) |
1411 |
GPS-L1 |
|
NDFG009-1411-1575.42MHz |
40.00(2dB) |
0.9(1.3*) |
0.1(0.5*) |
1411 |
GPS-L1 |
|
NDFG010-1411-1580.00MHz |
46.00 |
1.8(2.1*) |
0.3(0.6*) |
1411 |
BD2+GPL1+GLL1 |
|
NDF9377-3030-1582.50MHz |
47.00 |
2.0(3.5*) |
0.8(1.0*) |
DCC6C |
BD2+GPL1+GLL1 |
|
NDF9471-3030-1583.00MHz |
46.79 |
1.8(2.1*) |
0.5(0.8*) |
DCC6C |
BD2+GPL1+GLL1 |
|
NDF9234-3030-1583.00MHz |
59.00 |
2.2(3.0*) |
1.0(1.5*) |
DCC6C |
BD2+GPL1+GLL1 |
|
NDF9255-3030-1586.36MHz |
58.00 |
2.7(5.0*) |
1.0(2.0*) |
QCC8D |
BD2+GPL1+GLL1 |
|
NDF9256-3030-1590.00MHz |
40.00 |
3.2(3.8*) |
0.6(1.2*) |
DCC6C |
BD2+GPL1+GLL1 |
|
NDF9196-3030-1591.00MHz |
41.00 |
1.5(2.5*) |
0.5(1.0*) |
DCC6C |
BD2+GPL1+GLL1 |
|
NDF9220-3030-1600.00MHz |
6.00 |
2.0(3.2*) |
0.4(1.0*) |
DCC6C |
Beidou |
|
NDF9197-3030-1616.00MHz |
10.00 |
2.5(3.0*) |
0.5(1.0*) |
DCC6C |
Beidou |
|
NDF9150-3030-1616.00MHz |
10.00 |
2.8(4.0*) |
0.4(1.2*) |
DCC6C |
Beidou |
|
NDF9219-3030-1616.00MHz |
20.00 |
2.0(3.2*) |
0.5(1.2*) |
DCC6C |
Beidou |
|
NDF9257-3030-1620.00MHz |
6.00 |
4.6(5.0*) |
0.4(1.0*) |
DCC6C |
Beidou |
|
NDF2492-3030-2492.00MHz |
8.00 |
6.0(8.0*) |
0.3(2.0*) |
DCC6C |
Beidou |
|
NDF9200-3030-2492.00MHz |
10.00 |
2.0(3.0*) |
0.4(1.2*) |
DCC6C |
Beidou |
*代表最大值；
以上为部分产品技术参数，获取更多资讯请或电邮winnsky@winnsky.com
