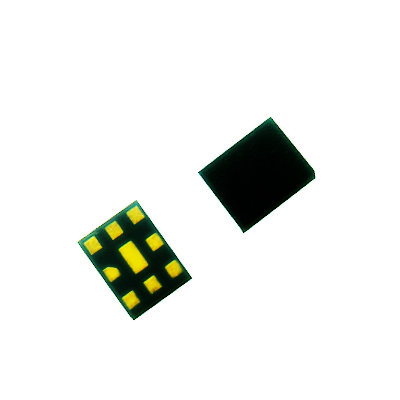

声表双工器 SAW Duplexer
| 型号 | Tx/Rx(MHz) | 带宽（MHz) | Tx | Rx | 插 损 | 尺寸（mm） | 封装 |
| NDF8966 | 815.5/860.5 | 22 | 804-826 | 849-871 | 2.4(3.0*) | 2.5*2.0 | 9PIN |
| NDF8988 | 836.5/881.5 | 25 | 824-849 | 869-894 | 1.8(2.3*) | 2.5*2.0 | 9PIN |
| NDF8798 | 881.5/836.5 | 25 | 824-849 | 869-894 | 2.4(3.0*) | 2.5*2.0 | 9PIN |
| NDF8998 | 881.5/836.5 | 25 | 824-849 | 869-894 | 2.4(3.0*) | 2.5*2.0 | 9PIN |
| NDF8999 | 881.5/836.5 | 25 | 824-849 | 869-894 | 2.2(2.7*) | 2.5*2.0 | 9PIN |
| NDF8977 | 902.5/947.5 | 25 | 890-915 | 935-960 | 1.8(2.2*) | 2.5*2.0 | 9PIN |
| NDF9026 | 903.75/926.25 | 2 | 902-904 | 925-927 | 3.5(4.5*) | 3.8*3.8 | QCC8B |
| NDF9035 | 914.5/959.5 | 1 | 914-915 | 959-960 | 3.5(4.5*) | 3.8*3.8 | QCC8B |
| NDF9025 | 926.25/903.75 | 2 | 925-927 | 902-904 | 3.5(4.5*) | 3.8*3.8 | QCC8B |
| NDF8777 | 947.5/902.5 | 25 | 890-915 | 935-960 | 2.4(2.8*) | 2.5*2.0 | 9PIN |
| NDF8978 | 947.5/902.5 | 25 | 890-915 | 935-960 | 2.4(2.8*) | 2.5*2.0 | 9PIN |
| NDF9034 | 959.5/914.5 | 1 | 959-960 | 914-915 | 3.5(4.5*) | 3.8*3.8 | QCC8B |
